在线折光仪传感器：
L-Rix

The process connection O-ring for the L-Rix 2x00 ensures a reliable seal between the L-Rix 2x00 and the process connection. It prevents the leakage of liquids and ensures a secure connection in industrial applications. Scope of delivery 1 pc. L-Rix 2X00 Process Connection O-Ring Technical specification
- COG Material: Si 971, FL
- Base Elastomer: Fluorosilicone Rubber (FVMQ)
- Inner Diameter (d₁): 25 mm
- Cross-Section (d₂): 2 mm
- Operating Temperature (Air): -60 °C to 200 °C
- Hardness: Shore A
- Color: Blue

Process adapter for integrating process sensors into tanks or pipelines, optimized for use in hygienic applications. Scope of delivery 1 pcs. L-Rix 3X00 Adapter VARIVENT® N Technical specification
- Material: Stainless steel 1.4404
- Sensor connection: G1" internal thread, according to DIN/ISO 228
- Process connection: Varivent Type N
- Pressure resistance: 25 bar

A-coded M12 connection cable designed for industrial applications. It features a 5-pin M12 connector on both ends, facilitating secure and reliable connections between devices. Scope of delivery 1 pcs. Cable M12 5BU/5ST A-Coded Technical specification
- Operating Voltage: 30 AC / 36 DC V
- Protection Rating: IP67/IP68/IP69K
- Cable Material: PUR
- Seal Material: FKM
- Cable Length: 5 m
- Connector: 1 x M12, straight
- Connector Coding: A
- Connector Tightening Torque: 0.6 ... 1.5 Nm

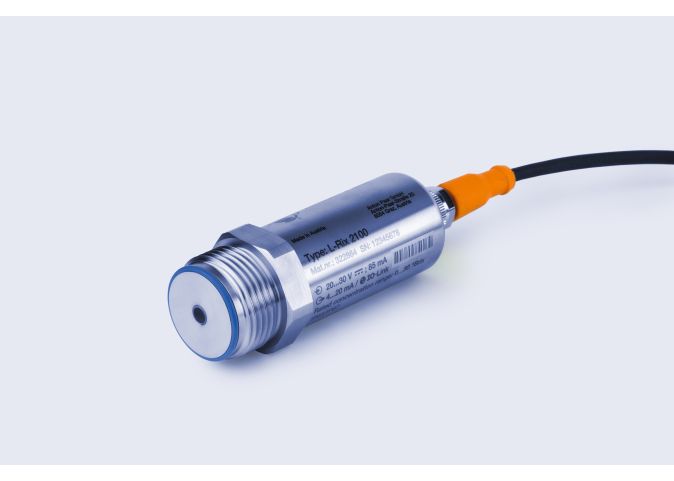

Process refractometer for monitoring sugar concentration and temperature. It is specifically designed for monitoring cooling lubricants and quenching media. Measuring principle without moving parts is maintenance-free with minimal operating costs. Scope of delivery 1 pcs. L-Rix 2100 Transmitter 1 pcs. Sensor protection cap 1 pcs. M12 protection cap 1 pcs. Instruction Manual 1 pcs. Calibration data sheet Technical specification
- Accuracy: ±0.0003 nD (equivalent to ± 0.2 % mass)
- Repeatability: ±0.00015 nD (equivalent to ± 0.1 % mass)
- Refractive index range: 1.3268 to 1.3830 nD
- Sugar range: 0 to 30 %
- Process temperature: 0 °C to 60 °C
- Process pressure: 100 mbara to 10 bara
- Ambient temperature: -5 °C to 55 °C
- Wetted parts: Stainless steel 1.4305, PEEK, Sapphire
- Protection rating: IP65; IP67
- Process connection: G1" Male, according to DIN/ISO 228
- Output Signal: Dual-channel analog (4–20 mA) or IO-Link
